Product Overview

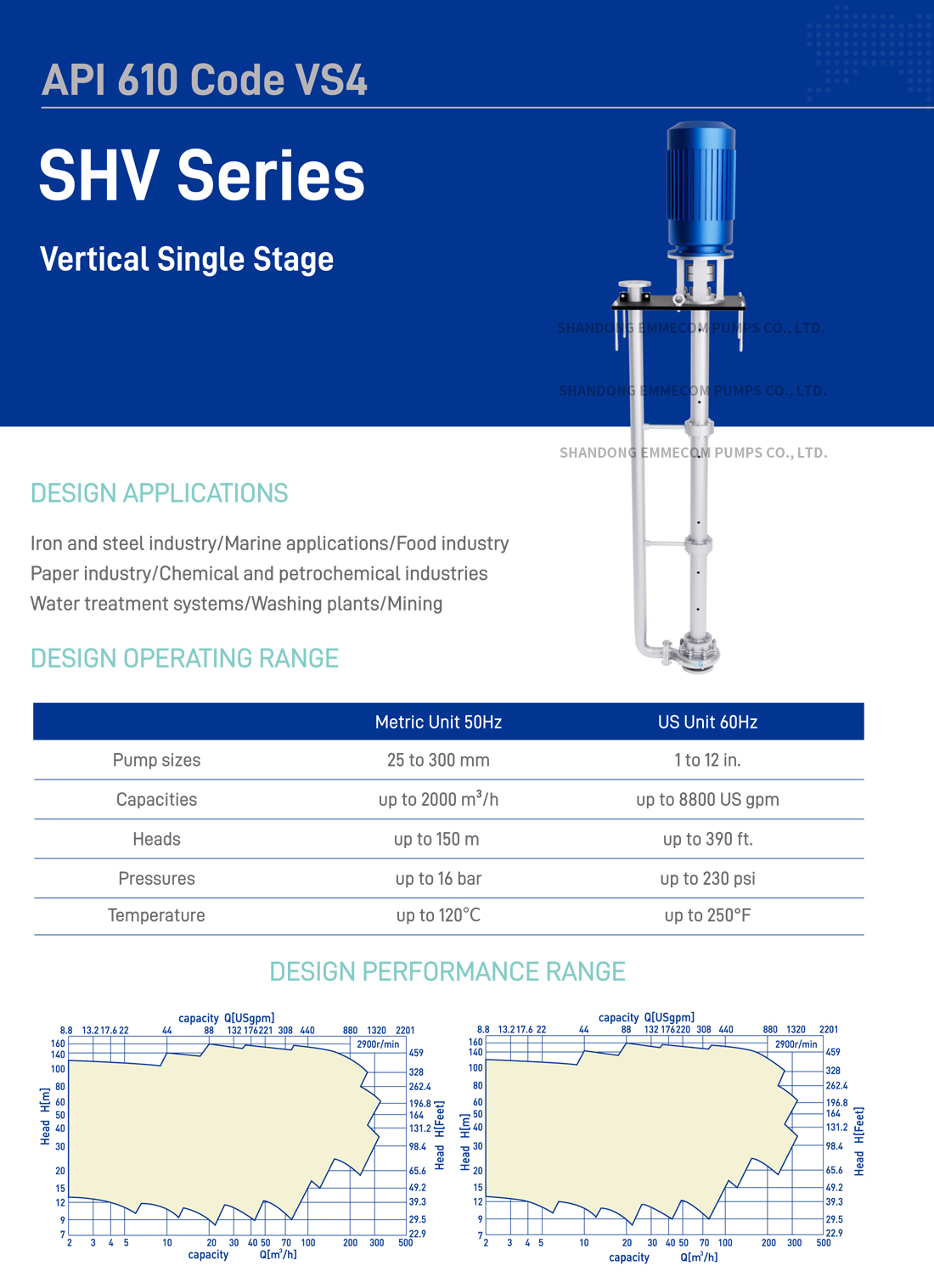

The SHV single stage vertical submerged centrifugal pump is derived from the SEH pump. Pump casing, impeller and other main flow parts are interchangeable with SEH series. Its marking, performance and dimensions are equivalent to IS02858. It is suitable for chemical process and conveying corrosive media.

Performance range

Size: 25~250mm

Flow: 5~1000m³/h

Head: 4~140m

Speed: 2900r/min, 1450 r/min

Temperature: -20°C ~120°C

Max pressure: 1.6bar
